OpenGL教程：3. 绘制一个矩形与EBO

上一节我们实现了一个三角形的绘制。现在思考下如何绘制一个矩形？因为OpenGL中最小的绘制片元是一个三角面片（不考虑点和线哦），所以答案是绘制两个三角形就是一个矩形了。

顶点数据

首先确定顶点的浮点数据：

1
2
3
4
5
6
7
8
float vertices[] = {
        0.5f, 0.5f, 0.0f,   // 右上角
        0.5f, -0.5f, 0.0f,  // 右下角
        -0.5f, -0.5f, 0.0f, // 左下角
        -0.5f, 0.5f, 0.0f,   // 左上角
        -0.5f, -0.5f, 0.0f, // 左下角
        0.5f, 0.5f, 0.0f,   // 右上角
};

因为是两个三角形，所以就有六个顶点。

VAO和VBO

然后定义矩形的vao和vbo，并解释数据：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
//initialize vbo
unsigned int vbo;
glGenBuffers(1, &vbo);  //spawn a new vbo
glBindBuffer(GL_ARRAY_BUFFER, vbo); //bind vbo with ARRAY_BUFFER
glBufferData(GL_ARRAY_BUFFER, sizeof(vertices), vertices,
             GL_STATIC_DRAW);  //transport vertices data to buffer memory

//initialize vao
unsigned int vao;
glGenVertexArrays(1, &vao);
glBindVertexArray(vao);

//set vertices pointer
glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 3 * sizeof(float), (void *) nullptr);
glEnableVertexAttribArray(0);

编译着色器

定义绘制矩形的顶点着色器和片元着色器：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
   //initialize shader
   const char *vshSource = "#version 330 core\n"
                           "layout (location = 0) in vec3 aPos;\n"
                           "void main()\n"
                           "{\n"
                           "   gl_Position = vec4(aPos.x, aPos.y, aPos.z, 1.0);\n"
                           "}\0";
   const char *fshSource = "#version 330 core\n"
                           "out vec4 FragColor;\n"
                           "void main()\n"
                           "{\n"
                           "   FragColor = vec4(0.1f, 0.4f, 0.6f, 1.0f);\n"
                           "}\n\0";

//compile vshader
   unsigned int vertexShader = glCreateShader(GL_VERTEX_SHADER);
   glShaderSource(vertexShader, 1, &vshSource, nullptr);
   glCompileShader(vertexShader);

   //compile fshader
   unsigned int fragmentShader = glCreateShader(GL_FRAGMENT_SHADER);
   glShaderSource(fragmentShader, 1, &fshSource, nullptr);
   glCompileShader(fragmentShader);

   //spawn shader program
   unsigned int shaderProgram = glCreateProgram();
   glAttachShader(shaderProgram, vertexShader);
   glAttachShader(shaderProgram, fragmentShader);
   glLinkProgram(shaderProgram);

绘制

绘制阶段：

1
2
3
4
5
6
7
8
9
10
11
12
13
while (!glfwWindowShouldClose(window)) {
    glClearColor(0.2f, 0.3f, 0.3f, 1.0f);
    glClear(GL_COLOR_BUFFER_BIT);

    glUseProgram(shaderProgram);

    glBindVertexArray(vao);
    glDrawArrays(GL_TRIANGLES, 0, 6);
    glBindVertexArray(0);

    glfwSwapBuffers(window);
    glfwPollEvents();
}

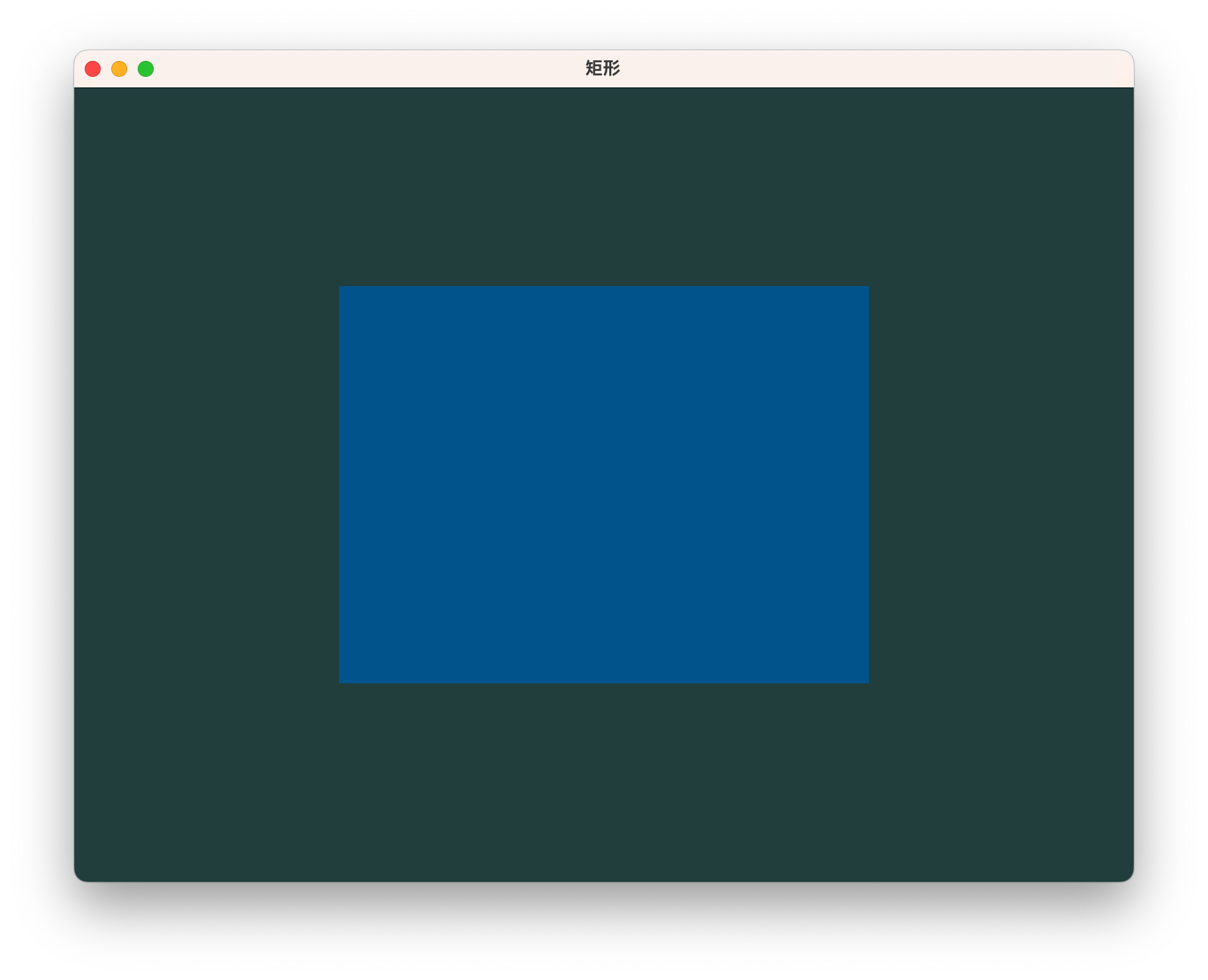

image-20230119152557222

代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
//
// Created by inver on 2022/9/11.
//

#include <iostream>
#include <cmath>
#include "glad/glad.h"
#include "GLFW/glfw3.h"

int main() {
    glfwInit();
    glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 3);
    glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 3);
    glfwWindowHint(GLFW_OPENGL_PROFILE, GLFW_OPENGL_CORE_PROFILE);

#ifdef __APPLE__
    glfwWindowHint(GLFW_OPENGL_FORWARD_COMPAT, GL_TRUE);
#endif

    GLFWwindow *window = glfwCreateWindow(800, 600, "矩形", nullptr, nullptr);
    if (window == nullptr) {
        std::cout << "Error: Fail to create window! \n";
        glfwTerminate();
        return -1;
    }

    glfwMakeContextCurrent(window);

    if (!gladLoadGLLoader((GLADloadproc) glfwGetProcAddress)) {
        std::cout << "Error: Fail to initialize GLAD! \n";
        return -1;
    }

    //End initialize glfwSource and glad

    float vertices[] = {
            0.5f, 0.5f, 0.0f,   // 右上角
            0.5f, -0.5f, 0.0f,  // 右下角
            -0.5f, -0.5f, 0.0f, // 左下角
            -0.5f, 0.5f, 0.0f,   // 左上角
            -0.5f, -0.5f, 0.0f, // 左下角
            0.5f, 0.5f, 0.0f,   // 右上角
    };

    //initialize vbo
    unsigned int vbo;
    glGenBuffers(1, &vbo);  //spawn a new vbo
    glBindBuffer(GL_ARRAY_BUFFER, vbo); //bind vbo with ARRAY_BUFFER
    glBufferData(GL_ARRAY_BUFFER, sizeof(vertices), vertices,
                 GL_STATIC_DRAW);  //transport vertices data to buffer memory
    //GL_STATIC_DRAW means static data (not dynamic)

    //initialize vao
    unsigned int vao;
    glGenVertexArrays(1, &vao);
    glBindVertexArray(vao);

    //set vertices pointer
    glEnableVertexAttribArray(0);
    glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 3 * sizeof(float), (void *) nullptr);

    //initialize shader
    const char *vshSource = "#version 330 core\n"
                            "layout (location = 0) in vec3 aPos;\n"
                            "void main()\n"
                            "{\n"
                            "   gl_Position = vec4(aPos.x, aPos.y, aPos.z, 1.0);\n"
                            "}\0";
    const char *fshSource = "#version 330 core\n"
                            "out vec4 FragColor;\n"
                            "void main()\n"
                            "{\n"
                            "   FragColor = vec4(0.1f, 0.4f, 0.6f, 1.0f);\n"
                            "}\n\0";

    //compile vshader
    unsigned int vertexShader = glCreateShader(GL_VERTEX_SHADER);
    glShaderSource(vertexShader, 1, &vshSource, nullptr);
    glCompileShader(vertexShader);

    //compile fshader
    unsigned int fragmentShader = glCreateShader(GL_FRAGMENT_SHADER);
    glShaderSource(fragmentShader, 1, &fshSource, nullptr);
    glCompileShader(fragmentShader);

    //spawn shader program
    unsigned int shaderProgram = glCreateProgram();
    glAttachShader(shaderProgram, vertexShader);
    glAttachShader(shaderProgram, fragmentShader);
    glLinkProgram(shaderProgram);

    while (!glfwWindowShouldClose(window)) {
        glClearColor(0.2f, 0.3f, 0.3f, 1.0f);
        glClear(GL_COLOR_BUFFER_BIT);

        glUseProgram(shaderProgram);

        glBindVertexArray(vao);
        glDrawArrays(GL_TRIANGLES, 0, 6);
        glBindVertexArray(0);

        glfwSwapBuffers(window);
        glfwPollEvents();
    }

    glDeleteProgram(shaderProgram);
    glDeleteShader(vertexShader);
    glDeleteShader(fragmentShader);
    glfwTerminate();
}

优化思路：采用EBO

我们在绘制矩形的时候发现，我们多用了两个顶点。那有没有办法在绘制四个顶点的矩形呢？答案是采用EBO（Element Buffer Object），即元素缓冲对象。说白了，这东西就是根据你顶点的索引来绘制。有点抽象，但举个例子就好理解了。

正常来说，矩形的顶点应该如下：

1
2
3
4
5
6
float vertices[] = {
          0.5f, 0.5f, 0.0f,   // 右上角，索引[0]
          0.5f, -0.5f, 0.0f,  // 右下角，索引[1]
          -0.5f, -0.5f, 0.0f, // 左下角，索引[2]
          -0.5f, 0.5f, 0.0f   // 左上角，索引[3]
  };

索引类似于数组下标，但这里是按照三维向量为一个单位的。所以这里有四个索引。

EBO可以按照如下的索引数组来绘制图形：

1
2
3
4
unsigned int indices[] = {
          0, 1, 3,    //第一个三角形
          1, 2, 3     //第二个三角形
  };

每一行表示一个三角面片，其值是顶点的索引。这里表示第一个三角面片是由顶点索引0、索引1和索引3组成的，第二个三角面片是由顶点索引1、索引2和索引3组成的。

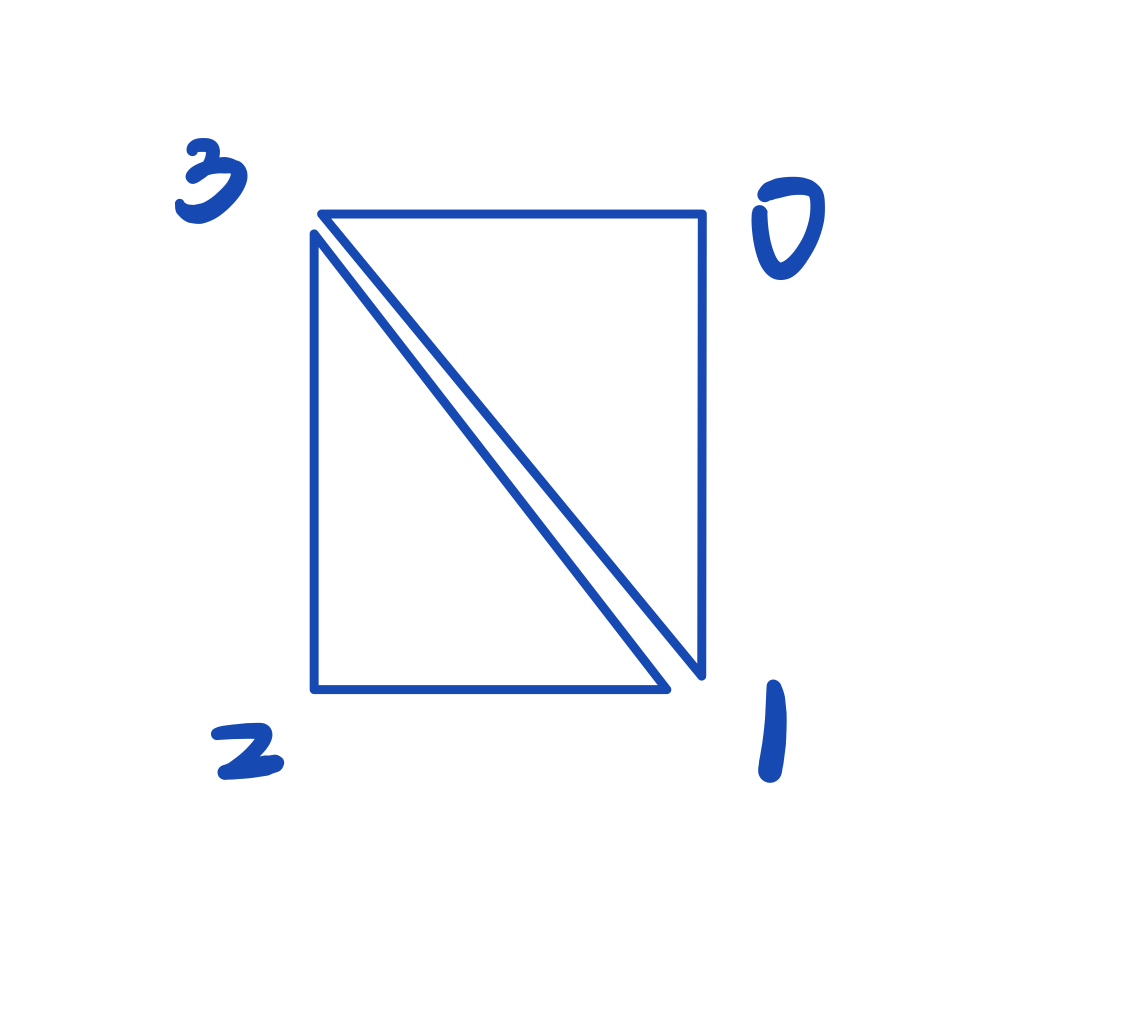

image-20230119154040949

这种方法更好！

要使用EBO，只需在VAO和VBO后面多增加一个生成EBO的代码：

1
2
3
4
5
6
//initialize ebo
unsigned int ebo;
glGenBuffers(1, &ebo);
glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, ebo);
glBufferData(GL_ELEMENT_ARRAY_BUFFER, sizeof(indices), indices, GL_STATIC_DRAW);

然后在绘制的时候，使用glDrawElements函数绘制：

1
2
3
4
5
6
7
8
9
10
11
12
13
while (!glfwWindowShouldClose(window)) {
    glClearColor(0.2f, 0.3f, 0.3f, 1.0f);
    glClear(GL_COLOR_BUFFER_BIT);

    glUseProgram(shaderProgram);

    glBindVertexArray(vao);
    glDrawElements(GL_TRIANGLES, 6, GL_UNSIGNED_INT, nullptr);		//使用glDrawElements
    glBindVertexArray(0);

    glfwSwapBuffers(window);
    glfwPollEvents();
}

glDrawElements函数的定义如下：

1
2
// 绘制模式、索引个数（indices数组的元素个数）、indices数组的类型、indices数组的指针（如果使用了ebo就不需要了，直接nullptr）
void glDrawElements(GLenum mode, GLsizei count, GLenum type, const void * indices);

从函数的定义来看，也可以不使用EBO来实现，只需：

1
glDrawElements(GL_TRIANGLES, 6, GL_UNSIGNED_INT, indices);		//使用glDrawElements

前提是，EBO被禁用了，不然会出现错误！

以下是使用了EBO的代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
//
// Created by inver on 2022/9/11.
//

#include <iostream>
#include <cmath>
#include "glad/glad.h"
#include "GLFW/glfw3.h"

int main() {
    glfwInit();
    glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 3);
    glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 3);
    glfwWindowHint(GLFW_OPENGL_PROFILE, GLFW_OPENGL_CORE_PROFILE);

#ifdef __APPLE__
    glfwWindowHint(GLFW_OPENGL_FORWARD_COMPAT, GL_TRUE);
#endif

    GLFWwindow *window = glfwCreateWindow(800, 600, "矩形", nullptr, nullptr);
    if (window == nullptr) {
        std::cout << "Error: Fail to create window! \n";
        glfwTerminate();
        return -1;
    }

    glfwMakeContextCurrent(window);

    if (!gladLoadGLLoader((GLADloadproc) glfwGetProcAddress)) {
        std::cout << "Error: Fail to initialize GLAD! \n";
        return -1;
    }

    //End initialize glfwSource and glad

    float vertices[] = {
            0.5f, 0.5f, 0.0f,   // 右上角
            0.5f, -0.5f, 0.0f,  // 右下角
            -0.5f, -0.5f, 0.0f, // 左下角
            -0.5f, 0.5f, 0.0f   // 左上角
    };

    unsigned int indices[] = {
            0, 1, 3,    //第一个三角形
            1, 2, 3     //第二个三角形
    };

    //initialize vbo
    unsigned int vbo;
    glGenBuffers(1, &vbo);  //spawn a new vbo
    glBindBuffer(GL_ARRAY_BUFFER, vbo); //bind vbo with ARRAY_BUFFER
    glBufferData(GL_ARRAY_BUFFER, sizeof(vertices), vertices,
                 GL_STATIC_DRAW);  //transport vertices data to buffer memory
    //GL_STATIC_DRAW means static data (not dynamic)

    //initialize vao
    unsigned int vao;
    glGenVertexArrays(1, &vao);
    glBindVertexArray(vao);

    //set vertices pointer
    glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 3 * sizeof(float), (void *) nullptr);
    glEnableVertexAttribArray(0);

    //initialize ebo
    unsigned int ebo;
    glGenBuffers(1, &ebo);
    glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, ebo);
    glBufferData(GL_ELEMENT_ARRAY_BUFFER, sizeof(indices), indices, GL_STATIC_DRAW);

    //initialize shader
    const char *vshSource = "#version 330 core\n"
                            "layout (location = 0) in vec3 aPos;\n"
                            "void main()\n"
                            "{\n"
                            "   gl_Position = vec4(aPos.x, aPos.y, aPos.z, 1.0);\n"
                            "}\0";
    const char *fshSource = "#version 330 core\n"
                            "out vec4 FragColor;\n"
                            "void main()\n"
                            "{\n"
                            "   FragColor = vec4(0.1f, 0.4f, 0.6f, 1.0f);\n"
                            "}\n\0";

    //compile vshader
    unsigned int vertexShader = glCreateShader(GL_VERTEX_SHADER);
    glShaderSource(vertexShader, 1, &vshSource, nullptr);
    glCompileShader(vertexShader);

    //compile fshader
    unsigned int fragmentShader = glCreateShader(GL_FRAGMENT_SHADER);
    glShaderSource(fragmentShader, 1, &fshSource, nullptr);
    glCompileShader(fragmentShader);

    //spawn shader program
    unsigned int shaderProgram = glCreateProgram();
    glAttachShader(shaderProgram, vertexShader);
    glAttachShader(shaderProgram, fragmentShader);
    glLinkProgram(shaderProgram);

    while (!glfwWindowShouldClose(window)) {
        glClearColor(0.2f, 0.3f, 0.3f, 1.0f);
        glClear(GL_COLOR_BUFFER_BIT);

        glUseProgram(shaderProgram);

        glBindVertexArray(vao);
        glDrawElements(GL_TRIANGLES, 6, GL_UNSIGNED_INT, nullptr);
        glBindVertexArray(0);

        glfwSwapBuffers(window);
        glfwPollEvents();
    }
    glDeleteProgram(shaderProgram);
    glDeleteShader(vertexShader);
    glDeleteShader(fragmentShader);
    glfwTerminate();
}

OpenGL教程：3. 绘制一个矩形与EBO

http://blog.inverseda.top/2022/11/03/ComputerGraphics/OpenGL/3.画矩形/

Author

InverseDa

Posted on

2022-11-03

Updated on

2023-03-30

Licensed under

#

Comments

Follow

Links

Categories

Recents

Archives

Tags

Bash1
C++2
CG1
G-Buffers1
GTA1
Go1
GodRays1
Linux1
OpenGL17
SSR1
Zsh1
vscode1
中缀表达式1
光线追踪1
入门2
区间合并1
单调栈1
单调队列1
哈希函数1
图论2
字符串2
并查集1
微分方程1
投影矩阵4
数学4
时间复杂度1
栈2
环境配置4
电学1
磁学1
离散化1
系统安装1
线性代数4
计算机图形学4
雅可比行列式1
静态双链表1
静态链表1
高中数学3
高等数学2

Catalogue

Your browser is out-of-date!

Update your browser to view this website correctly.&npsb;Update my browser now

×

×
